Pellet Heizung Motor-controller Board
=====================================

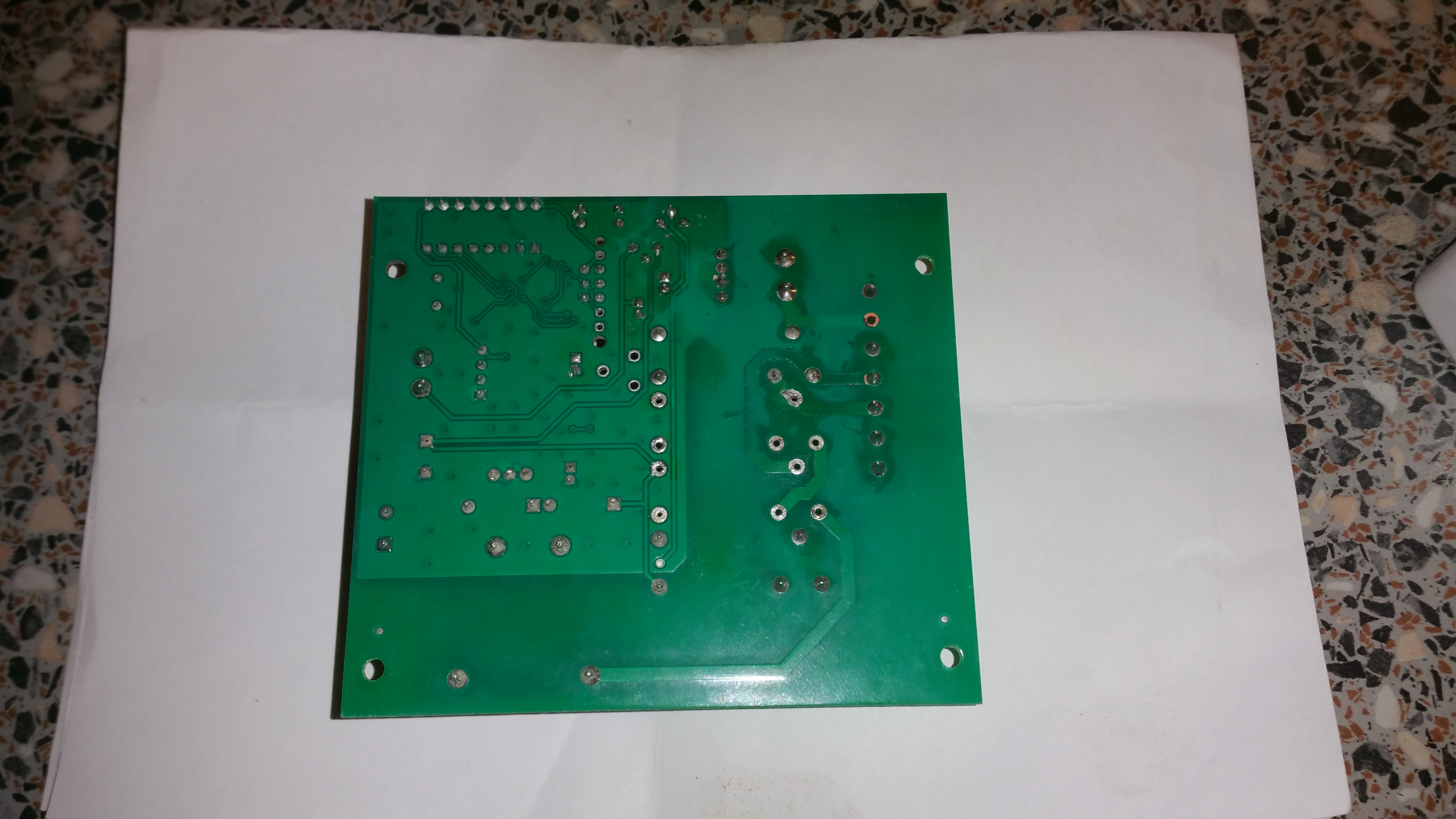

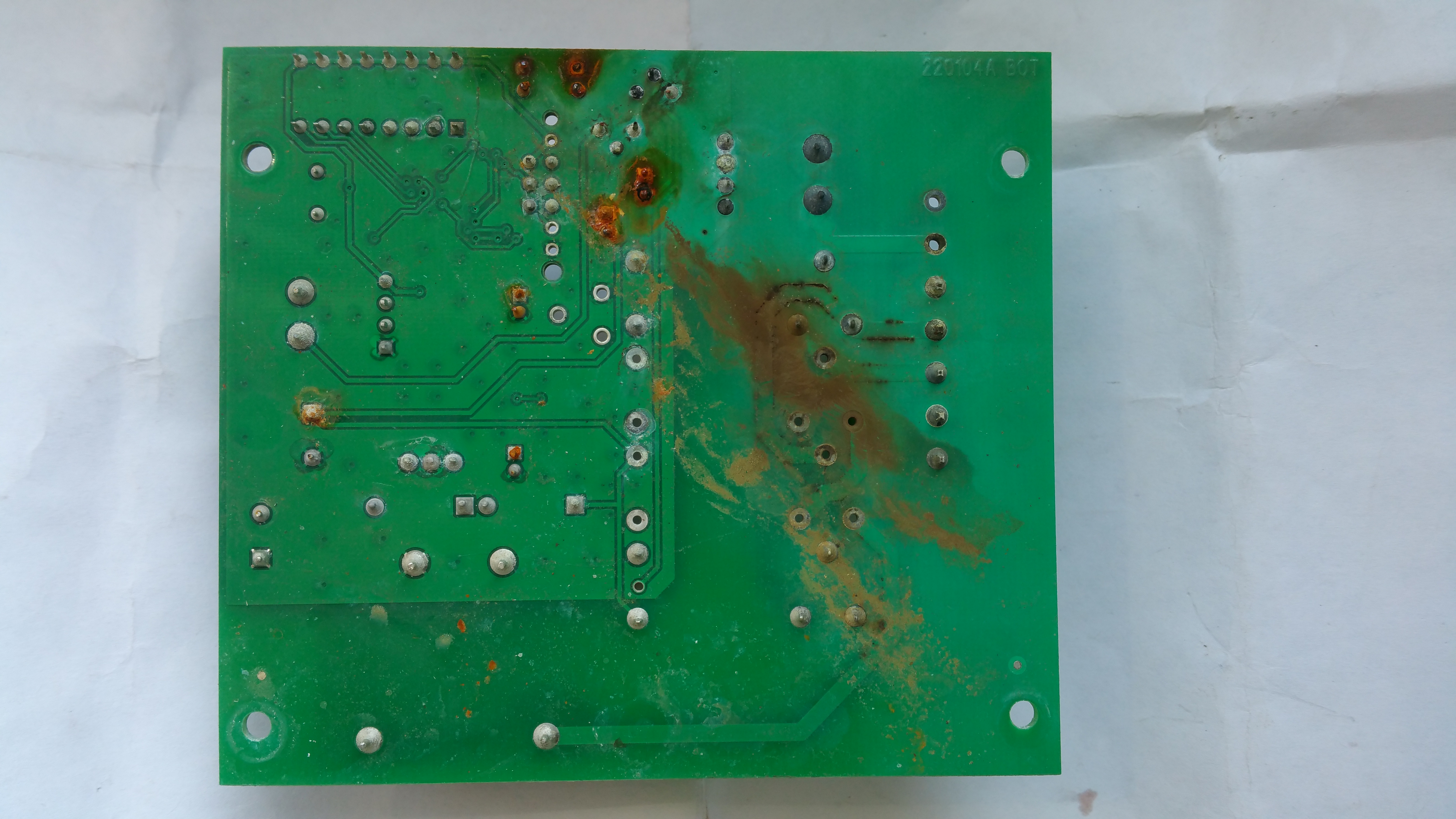

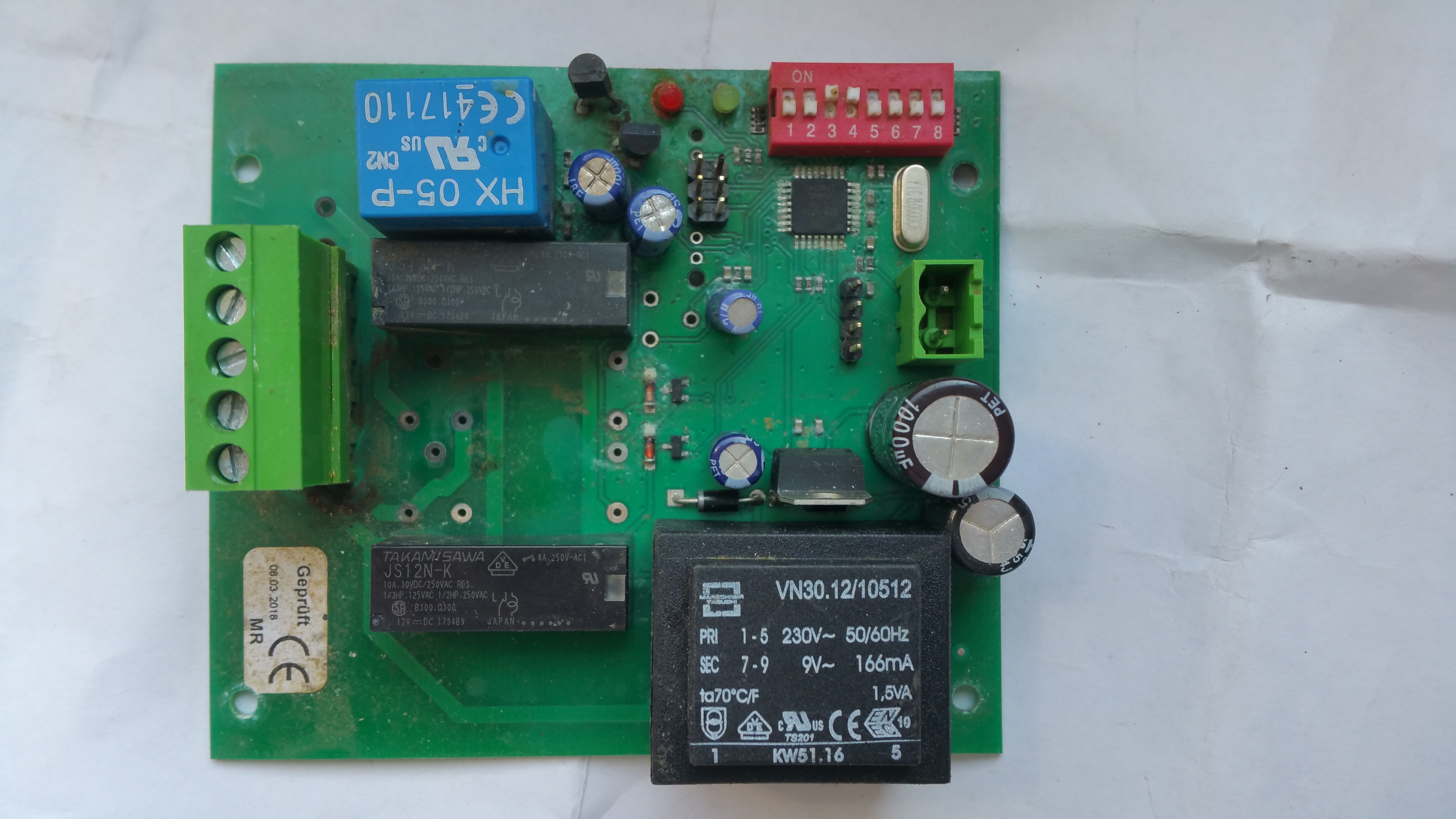

## 220104a bot/top
### L785CV Spannungsregler 5V
https://datasheet.octopart.com/L7805CV-STMicroelectronics-datasheet-7264666.pdf
### takamisawa js12n-k datasheet
https://datasheet.octopart.com/JS-12N-K-Takamisawa-datasheet-24571241.pdf
### HX 05-P/SP2
Stromwandler, Baureihe HX, 5A, -15A bis 15A, 1%, Spannungsausgang, 12V DC bis 15V DC
https://media.digikey.com/pdf/Data%20Sheets/LEM%20USA%20PDFs/HX%203-50-P.pdf
1: -Vor0
2: 0
3: +V
4: OUT
5: -> 6:
### VN30.12/10512 - Sicherheitstrafo 9V 166mA
https://www.elfa.se/Web/Downloads/ra/fo/hcMarschner-Trafo.pdf
### L79L12 - Negative voltage regulator, -12V
äußere 3fuß
https://www.st.com/resource/en/datasheet/l79l.pdf
### 78L12 - Positive voltage regulator, 12V
https://www.st.com/resource/en/datasheet/l78l.pdf
C1 100µF 35V
C2 100µF 35V
C3 10µF 100V
C4 100µF 35V
### ATMEGA8A
https://ww1.microchip.com/downloads/en/DeviceDoc/Atmel-2486-8-bit-AVR-microcontroller-ATmega8_L_datasheet.pdf
1 GND
2 RX
3 TX
4 1kOhm - RESET
|||
|---------|----------|
| Gnd | 29 RESET |
| 15 MOSI | 17 SCK |
| VCC | 16 MISO |
### Connector (2pins)
8: +12V
9: Atmega8 pin14 (PB2)
----------
